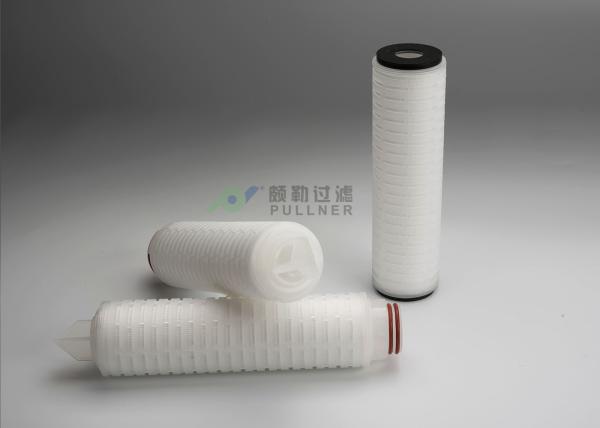

0.1um Gas Filtration PTFE Absolute Rating Pleated Filter Cartridge, Membrane Filter Cartridge
General Description
The PTFE filter cartridge is constructed of natural hydrophobic Polytetrafluoroethylene membrane media and non-woven support materials, all connection use thermal welding without using any glue on it, so there is no possibilities to cause pollution. It is used for gas filtration up to aseptic, large flux, high temperature resistance, strong acid and alkali resistance, wide chemical applicability, suitable for fermenter, carbon dioxide, nitrogen, compressed air. When used for gas filtration, it can achieve 100% retention of phage, bacteria and microparticles above 0.02um.
Dimensions
| Outer diameter |
2.7" (69mm) |
| Length |
10", 20", 30", 40" |
Material of Construction
| Filter Medium |
PTFE |
| Support/Drainage |
PP |
| Center core/Outer Cage/End Caps |
PP |
| Seals Material |
NBR, Silicone, EPDM, Viton, Teflon |
Filter Performance
| Removal rating |
For Gas: 0.04um, 0.022um |
| For Liquid: 0.1um, 0.22um, 0.45um, 0.65um |
| Max. operating temperature |
80℃ 0.17Mpa |
| Max. tolerance temperature |
140℃ 0.27Mpa |
| Max. operating differential pressure |
4.2 Bar @ 25℃ |
|
Max. operating differential pressure
(Reverse direction)
|
2.0 Bar @ 25℃ |
| Max. temperature sterilization |
121℃, 30 minutes |
Features:
Excellent performance of high temperature-resistance, repeat steam ability in situ;
Hydrophobic membrane with high flow;
Low pressure drop, high flow rate, long service life;
100% integrity tested;
Non fiber-releasing;
FDA compliance material.
Applications
Chemical industry: filtration of organic solvents, various alcohols, chemical reagents, etc.
Gas filtration: sterilization filtration of compressed air, nitrogen, carbon dioxide, etc.
Filtration of sterile tank respirators, air fermenters, etc.
