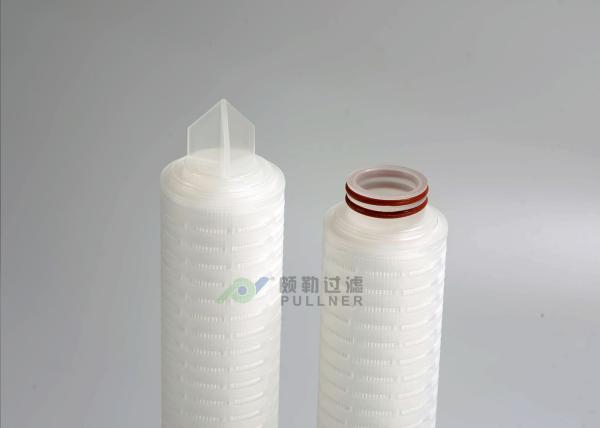

PES Nylon PVDF 0.2 Micron Food and Beverage Pleated Filter Cartridge 10" 20" 30" 40"
General description
The Membrane Pleated filter cartridge is constructed of PES Nylon PVDF media and nonwoven support materials. Adaptors are thermally welded with media without using any glue, so there will be no any possibilities to cause pollution.
Features
Resistant to organic solvents and oils;
Ultrasonic welding without any adhesive;
Absolute filtration accuracy and long service life;
Uniform pore size distribution, good filtration effect;
Clean environment production, high filter cleanliness;
High strength, good chemical compatibility, wide applicability;
The dual effects of electrostatic adsorption and microfiltration;
No fiber shedding, in line with the requirements of the pharmaceutical and food industry;
Applications
Pharmaceutical industry: various solvent and liquid filtration
Food and beverage industry: pure water, mineral water, juice, beer and alcohol filtration
Electronics industry: terminal filtration of high purity water and distilled water
Dimensions
|
Outer diameter
|
2.7" (69mm)
|
|
Length
|
10", 20", 30", 40"
|
Material of Construction
|
Filter Medium
|
Nylon PES PVDF
|
|
Support/Drainage
|
PP
|
|
Center core/Outer Cage/End Caps
|
PP
|
|
Seals Material
|
NBR, Silicone, EPDM, Viton, Teflon
|
Filter Performance
|
Removal rating
|
0.1um, 022um, 0.45um
|
|
Max. operating temperature
|
60℃
|
|
Max. operating differential pressure
|
4.2 Bar @ 25℃
|
|
Max. operating differential pressure
(Reverse direction)
|
2.1 Bar @ 25℃
|
|
Max. temperature sterilization
|
30 times, 30 minutes at 121℃
|
