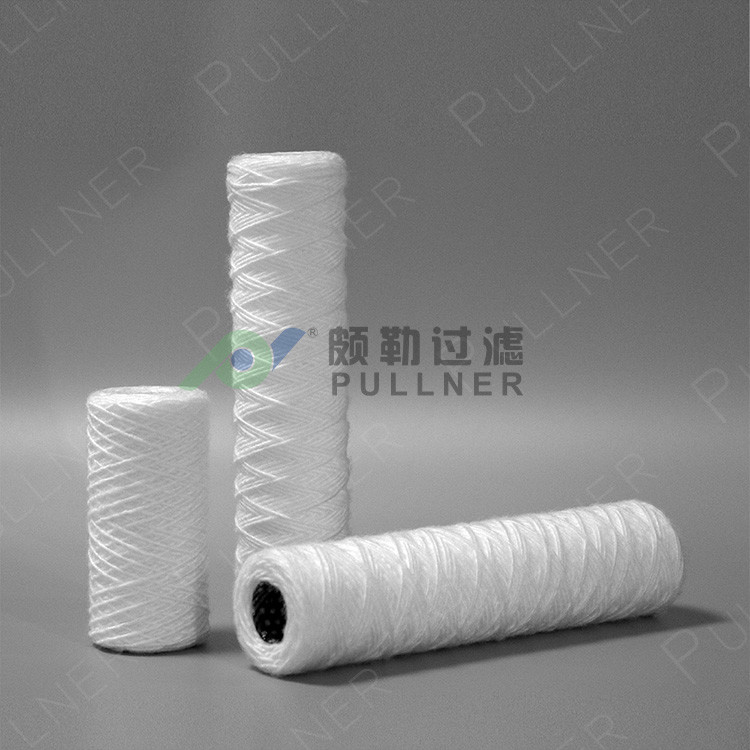

GF FO 5-70" PLX 5 Micron String Wound Sediment Filter

Name: GF FO 570quot PLX 5 Micron String Wound Sediment Filter
Brand: PULLNER
Price: 1 USD

Quality GF FO 5-70" PLX 5 Micron String Wound Sediment Filter wholesale

Brand Name : PULLNER

Model Number : PLX

Certification : ISO 9001

Place of Origin : China

MOQ : 10

Price : USD + 5 + pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 + pieces + per month

Delivery Time : 15 days

Packaging Details : Packed in wooden cases after plastic

Filter material : PP/CO/GF/FO

Max. operating dirrerential pressure : 4.0bar

suggestion replacement differential pressure : 2.0bar

length : 10''to 70''

Contact Now

Material PP/CO/GF/FO Length 5'' to 70'' Suggestion differential pressure:2.0bar PLX Series String Wound Filter Cartridge

PLX series filter cartridge is made of textile fiber (polypropylene, absorbent cotton or glass fiber) according to a specific process, tightly wound on a porous framework (PP or SS porous tube) to form a honeycomb structure with sparse outside and dense inside, which can effectively filter suspended solids in the fluid, Rust, particles and other impurities, with the characteristics of small pressure drop and large pollutant holding capacity.

Material Construction

Filter media

PP:Polypropylene

CO:Degreasing Cotton

GF:Glass Fiber

FO:Organic Fiber

Center Core

PP, Stainless Steel 304, 316L

Performance

Maximum Operating Temperature

PP:60℃

CO:120℃

GF:200℃

FO:120℃

Maximum Operating Differential Pressure

4.0bar

Recommend change-out Differential Pressure

2.0bar

Applications:

General purpose: RO Pre-filtration, all kinds of process water purification;

Industrial: Water pretreatment of power plant, deionized water pre-filtration.

Food and Beverage:Alcohol, Beverage.

Biopharmaceutical: Filtration of pharmaceutical, biotechnology, and plasma products.

Ordering Information

PLX A3 0500 40

Series	Filter Layer/Center core Material	Micron		Length
PLX	A1=PP/PP	0100	=1.0μm	05	=5"
	A2=PP/SS(Stainless Steel)	0300	=3.0μm	10	=10"
	A3=Degreasing Cotton/SS	0500	=5.0μm	20	=20"
	A4=Glass Fiber/SS	1000	=10μm	30	=30"
	A5=FO/SS	2500	=25μm	40	=40"
		7500	=75μm	50	=50"
		10000	=100μm	60	=60"
		15000	=150μm	70	=70
