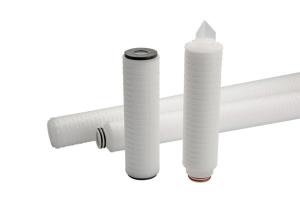

0.1um 10" Pharmaceutical PES Filter Cartridge Asymmetric Pore Structure

  • 1
  • 2
  • 3

Brand Name : PULLNER

Model Number : PES

Certification : FDA, ISO

Place of Origin : Shanghai China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100 pieces per week

Delivery Time : 12 working days

Packaging Details : Vacuum packing; 50pcs per carton.

OD : 2.7" (69mm)

Filter media : PES

Filtration rating : 0.1um, 0.22um, 0.45um, 0.65um

Length : 10"

Product name : PES Filter Cartridge

Filter Medium : Double Layer PES Membrane

Support Layer : Polypropylene

Effective Filter Area : 1.28 ㎡

Maximum Temperature : 90℃

Max. Differential Pressure : 4.0 Bar / 21℃

Steam Sterilization : 121℃ / 30min

Inline Steam Sterilization : 121℃ / 30min

Hot Water Sterilization : 85℃ / 30min

Contact Now

Beverage and Pharmaceutical High Flow PES Filter Cartridge 10" Length Long Service Life

General Description

The HFPS series filter cartridge is modified high-throughput sterilization filter, made of unique anti-contamination asymmetric Polyethersulfone(PES) membrane. The asymmetric membrane pore structure provides high throughput. Its high throughput makes them extremely dirt holding capacity and longer service life.

Applications

  • Large infusion sterilization filtration
  • Eye drop sterilization filtration
  • Biological vaccine, blood product filtration
  • Buffer, culture solution sterilization filtration
  • Water-based antibiotic liquid filtration

Features and Benefits

  • High throughput, long service life;
  • Asymmetric membrane pore structure gradient pore size greatly improves dirt holding capacity;
  • Integrity test ensures absolute sterilization;
  • Wide range of chemical compatibility, pH working range 1-14;
  • No any adhesives and surfactants, effectively reducing the risk of precipitation.

Material construction and Technical parameters

Filter media

Asymmetric Polyethersulfone(PES) membrane.

Support/Drainage

PP

Center core/outer support/end caps

PP

Max. operating temperature

90°C

Max. operating different pressure:

4.0 bar / 21°C

2.4 bar / 80°C

Max. operating different pressure:

(reverse direction)

2.0 bar/21℃

Steam sterilization

121℃/30min

Filtration area

0.6-0.7㎡/10’’

Biosecurity

Each 10’’Dissolution＜30mg

Endotoxin＜0.25EU/ml

0.1um 10" Pharmaceutical PES Filter Cartridge Asymmetric Pore Structure
