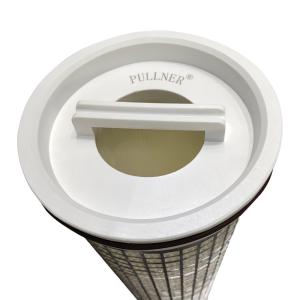

High flow 20um micron cartridge filter for sea water desalination and high temperature condensation
This large flow filter element can withstand high temperature, adopt large diameter structure, single end opening, service center support skeleton, can be used in the working condition of 120 degrees Celsius for a long time. The end cap and filter layer are welded by hot melt without any adhesive, so they have a wide range of chemical compatibility and can be used in a variety of fields, such as high temperature condensate treatment.
Material Construction
| Filter Media | PP |
| Support/Drainage | PP |
| End Cap Material | Fiberglass Reinforced Polypropylene |
Performance
| Max. Operation Temperature | 80℃ |
| Max. Operation Differential Pressure | 3.44bar / 120°C |
Flow Rate and Filtration Area
| Size (Diameter*Length) | Design Flow (m3/hr) | Maximum Flow (m3/hr) | Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
* General purpose: RO Prefiltration,
* Industrial purpose: Water pretreatment of power plant, deionized water pre-filtration.
* Food and Beverage: Alcohol, Beverage.
* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
