68.5mm High Density PP Pleated Filter Cartridge For Purtrity Reagents Filtering

Name: 685mm High Density PP Pleated Filter Cartridge For Purtrity Reagents Filtering
Brand: PULLNER
Price: 1 USD

Quality 68.5mm High Density PP Pleated Filter Cartridge For Purtrity Reagents Filtering wholesale

Brand Name : PULLNER

Model Number : PLZ-PPH

Certification : ISO9001, ISO45001

Place of Origin : China,ShangHai

MOQ : 1 piece

Price : Can be negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100pcs per day

Delivery Time : Eight working days

Packaging Details : Carton box after poly bag, 50pcs per carton.

Maximum Operating Temperature : 80℃

Mosit-heat sterilization : 121°C/30min

Maximum operating differential pressure : 4bar@25°C,2.6bar@25°C

Outside diameter : 68.5mm

Filtration area : 0.4-0.7m²

Flowing hot water sterilization : 85°C/30min

Brand : Pullner

Manufacture place : Shanghai

Contact Now

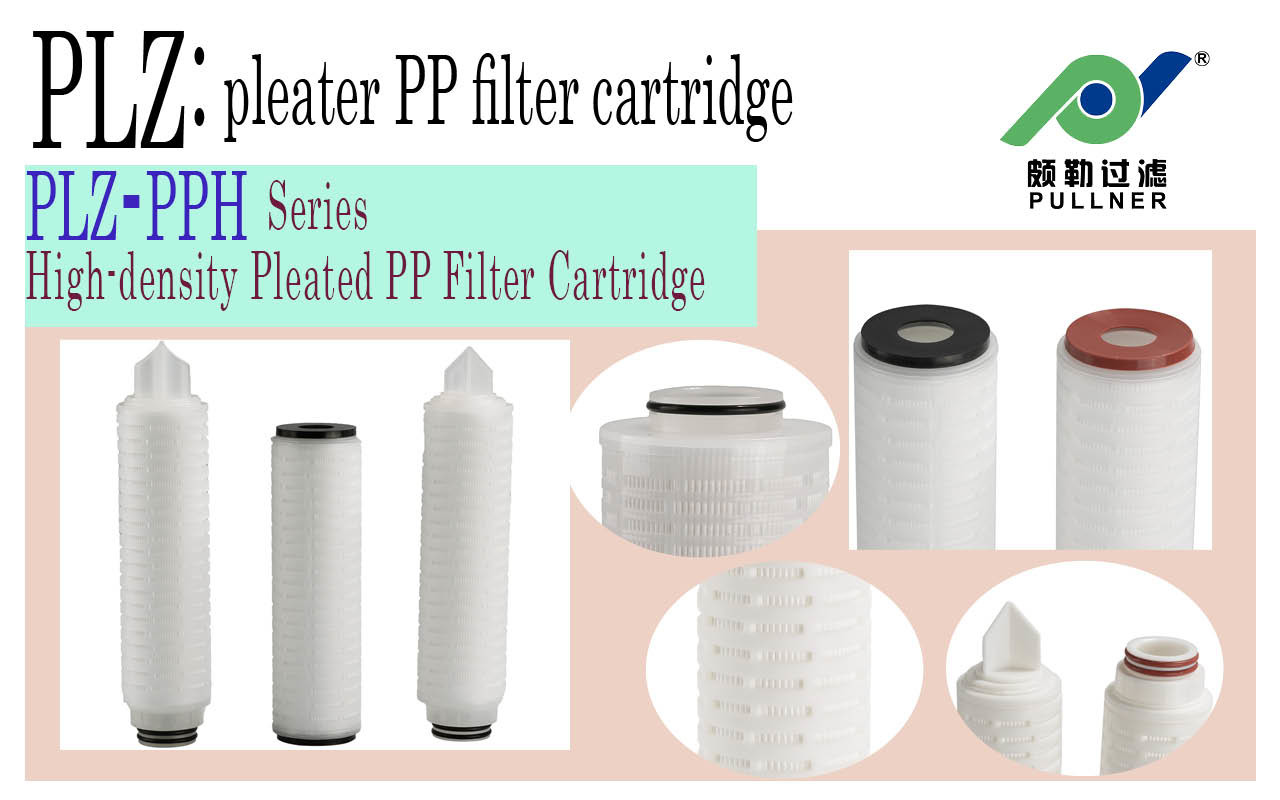

High-denstity Pleated PP Filter Cartridge for Purtrity reagents Filtering

The PPH series filter cartridge adopts all-polypropylene structure, double-layer gradient precision PP membrane. High dirt holding capacity, long life and high efficiency.Absoulte filtration accuracy,emsure the stable filter effect,99.9% trapping efficiency.

68.5mm High Density PP Pleated Filter Cartridge For Purtrity Reagents Filtering
Material Construction

Filter Media	Polypropylene (PP)
Support/Drainage	Polypropylene (PP)
Cage/Core/End Caps	Polypropylene (PP)
Seal Material	Silicone, NBR, Viton, EPDM

Filter Performance

Micron	0.1-20um
Filter area	0.4-0.7m²
Maximum Operating Temperature	80℃
Maximum Operating Dfferential Pressure	4bar@25°C 2.6bar@25°C
Flowing hot water sterilization	85°C/30min

Filtration Efficiency

PPH	＞95%	＞98%	＞99.8%	＞99.9%
0.3μm	0.15	0.22	0.3	0.5
0.5μm	0.22	0.3	0.5	0.65
0.65μm	0.45	0.5	0.65	0.8
0.8μm	0.5	0.65	0.8	1.0
1.0μm	0.65	0.8	1.0	3.0
3.0μm	1.0	2.0	3.0	5.0

68.5mm High Density PP Pleated Filter Cartridge For Purtrity Reagents Filtering

Purity reagents Filtering

High Pure water filtration

Prefilter biological

High-precision,high concentrations products filtration.

68.5mm High Density PP Pleated Filter Cartridge For Purtrity Reagents Filtering

Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.

68.5mm High Density PP Pleated Filter Cartridge For Purtrity Reagents Filtering

Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
