Brand Name : PULLNER
Model Number : PLZ-PPL
Place of Origin : China, ShangHai
Certification : ISO9001, ISO45001
MOQ : 1 piece
Price : To be negotiate
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 100pcs per day
Delivery Time : Five working days
Packaging Details : Carton box after poly bag, 50pcs per carton.
Product Name : Pleated Filter Cartridge
Outer Diameter : 2.5 Inch, 4.5 Inch, 6 Inch, 8 Inch
Filtration area : 0.4-0.7m³
Outside diameter : 68.5mm
Filtration Rating : 0.1-100 Micron
Material : Polypropylene, Polyester, Nylon
Sealing : O-ring, Heat-welded, Ultrasonic Welding
Maximum Operating Temperature : 80℃
Pleated Filter Cartridge is a kind of filtration device designed to reduce the amount of particles, dust, and other contaminants in liquid or gas. It is made of Polypropylene, Polyester, and Nylon materials. It has a filtration rating from 0.1 to 100 microns, and its length can range from 5 to 40 inches. The sealing methods used are O-ring, heat-welded, and ultrasonic welding. This pleated filter cartridge is designed to provide high-efficiency filtration performance while maintaining excellent durability and structural integrity. It is suitable for a wide range of applications, such as air filtration, water filtration, fuel filtration, chemical filtration, and more. With its superior quality, Pleated Filter Cartridge is the perfect choice for any filtration needs.
Material Construction
Filter Media | Support/Drainage | End Caps/Core/Cage |
Polypropylene | Polypropylene | Polypropylene |
Filter Performance
Micron | 1-20um |
Filter area | 0.4-0.7m² |
Maximum Operating Temperature | 80℃ |
Maximum Operating Dfferential Pressure | 4bar@25°C 2.6bar@25°C |
Flowing hot water sterilization | 85°C/30min |
Flow Rate and Filtration Area
Size (Diameter*Length) | Design Flow (m3/hr) | Maximum Flow (m3/hr) | Filtration Area (㎡) |
6"*20" | 15 | 40 | 2.6 |
6"*40" | 30 | 80 | 5.2 |
6"*60" | 45 | 120 | 7.8 |
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
![]() |

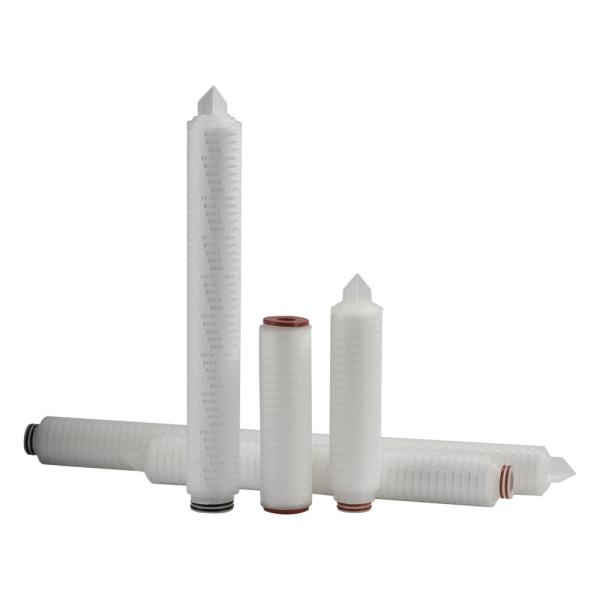

Chemical Contaminant Removal Pleated Filter Cartridge With Max Operating Temperature 65 - 80℃ Images |
